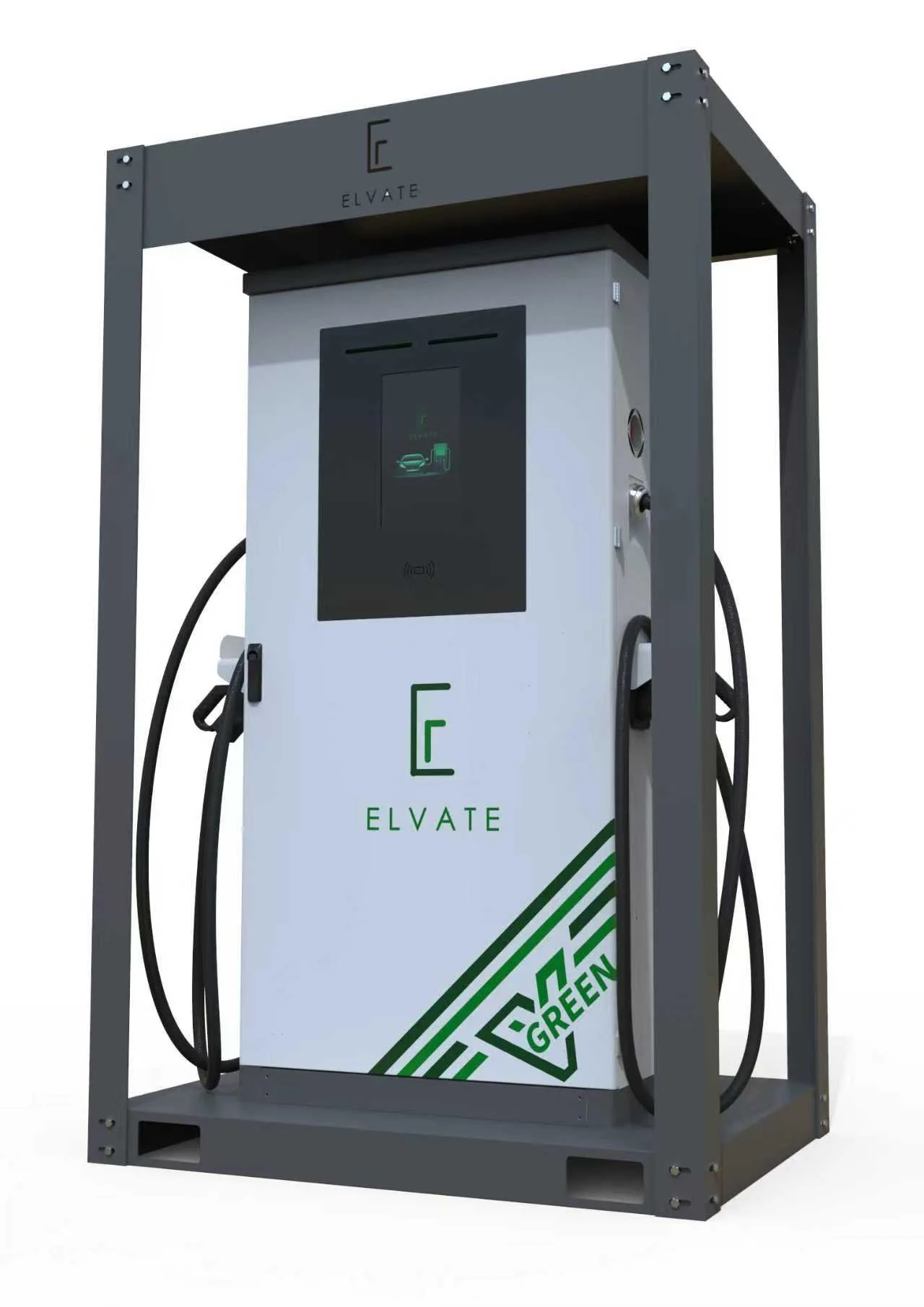

400 kW Supercharger
Dual-gun charger: 2 × 200 kW or 1 × 360 kW
You can connect both CCS2 gloves and get 200 kW per glove. Or, if you use one CCS2 glove, you can get 360 kW at a time. The charger is equipped with a power lock for easy temporary installation, but can also be connected via a cable in the charger.
Kiosk module/menu for configuring cards and RFID tags, as well as connecting your business/POS system for credit card payments.
-
Maximum power: 400 kW
2 × 200 kW charging
1 × 360 kW charging
2 x CCS2 gloves
IP55/IK10
Adjustable input current down to 16 amps.
Charging cable, 5 m
Full power up to 94% of the battery
15.6-inch color LED display
Cooling fan
4G/5G Wi-Fi connection
Connection: min. 16 A
Connection: 700 A (400 kW power)
-
Width: 1,400 mm
Height: 2,300 mm
Depth: 1,000 mm
Weight: 395 kg
-
How many amps do I need to get the full output from my charger?
Answer: You can generally multiply your amperage by 0.6 to determine how many kilowatts you can get from the charger.
Can the charger be left outside?
Answer: Yes, the charger is weatherproof and can withstand temperatures ranging from -30 degrees to 50 degrees Celsius.
Can I adjust the charger if the power supply to the charger is insufficient?
Answer: Yes, it’s no problem to reduce the current all the way down to 16 amps, but then charging will be very slow—about 11–12 kW per hour.
